SKU:DV-8DP-TSS

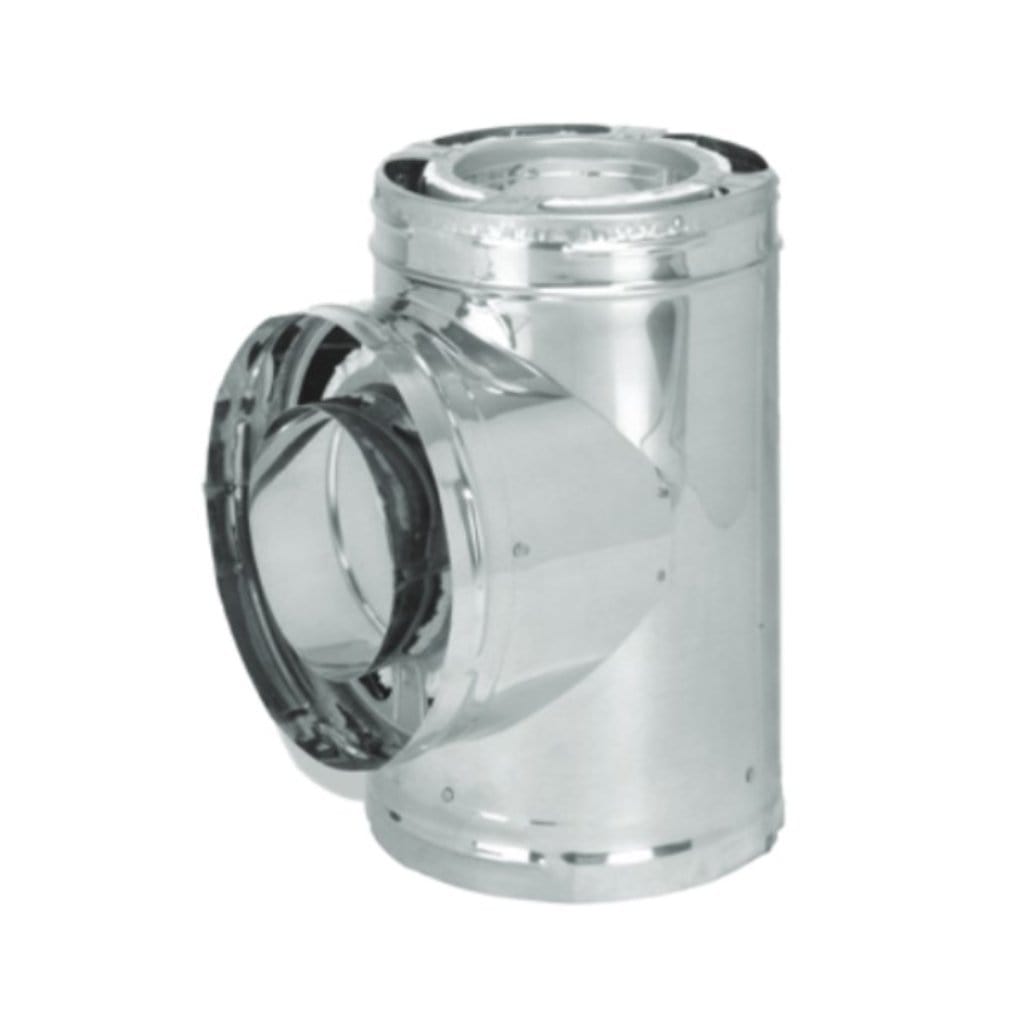

Majestic DuraPlus 8" Stainless Steel Tee With Cap
Majestic DuraPlus 8" Stainless Steel Tee With Cap
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
DuraPlus® is designed to stay cool on the outside, to provide a hot draft on the inside, to boost stove efficiency, and to provide for a fire-safe design that protects both the chimney and the building. This triple-wall chimney features two insulating layers (ceramic blanket, plus air space). The ceramic blanket insulation is held securely in position, eliminating hot spots common with loose-fill type insulations. In the event of a creosote fire, the compressible blanket insulation permits the chimney liner to expand outwardly in a radial direction.
Designed for normal, continuous operation at 1000°F flue gas temperatures, DuraPlus® subjected to rigorous and stringent HT requirements of the UL standard, including one hour at 1400°F, plus three ten minute chimney fire tests at 2100°F.
What's Included
- Tee With Cap
Features
- DuraPlus stainless steel tee with cap
- Use for through-the-wall chimney installations.
- The clean-out cap is removable for easy cleaning or inspection.
- Wall Straps, a Wall Thimble, and a Tee Support must be installed with the Tee as directed.
- Tees have a 1” insulating blanket.
- Ventilation air for the chimney must be drawn from outdoors.
- UL Listed to UL 103HT (MH7399).
Specifications
Model | DV-8DP-TSS |
Product Type |
Tee With Cap |
Size |
8" |
A | 17 1/2" |
B | 8 1/2" |
C | 9" |
Technical Dimensions
