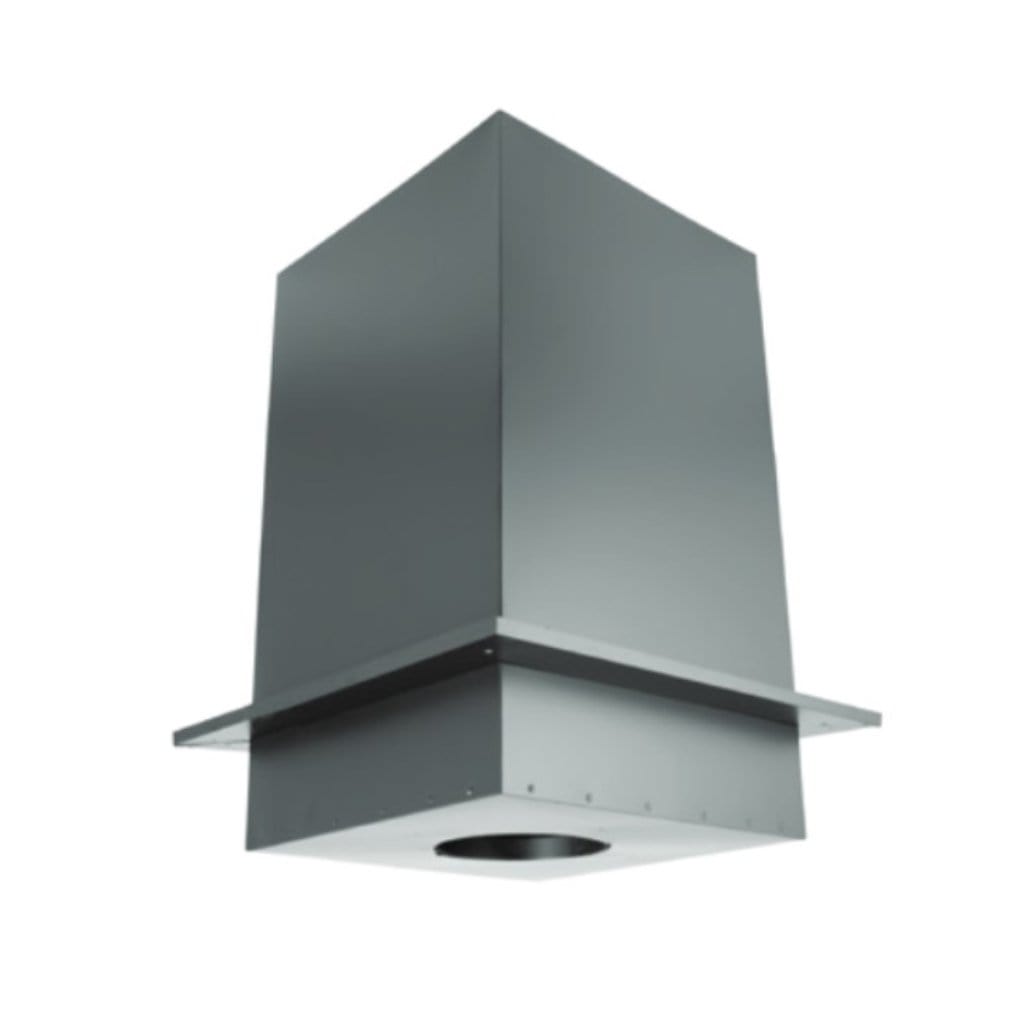

Majestic DuraPlus 6" x 36" Square Ceiling Support Box

Majestic DuraPlus 6" x 36" Square Ceiling Support Box

Regular price $504.00
Regular price Sale price $504.00
Sale Sold out
Shipping calculated at checkout.
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing

DuraPlus® is designed to stay cool on the outside, to provide a hot draft on the inside, to boost stove efficiency, and to provide for a fire-safe design that protects both the chimney and the building. This triple-wall chimney features two insulating layers (ceramic blanket, plus air space). The ceramic blanket insulation is held securely in position, eliminating hot spots common with loose-fill type insulations. In the event of a creosote fire, the compressible blanket insulation permits the chimney liner to expand outwardly in a radial direction.

Designed for normal, continuous operation at 1000°F flue gas temperatures, DuraPlus® subjected to rigorous and stringent HT requirements of the UL standard, including one hour at 1400°F, plus three ten minute chimney fire tests at 2100°F.

What's Included

  • Square Ceiling Support Box

Features

  • Use with flat, vaulted, or cathedral ceilings.
  • Square Ceiling Support Box is painted black.
  • Supports up to 35’ of DuraPlus Chimney.
  • Starter Section built-in.
  • For adapters, see DVL and DuraBlack section.
  • Trim included.
  • UL Listed to UL 103HT (MH7399).

Specifications

Model DV-6DP-CS36
Product Type
Ceiling Support Box
Size
6"
A 36"

Technical Dimensions

Ceiling Pitch

DuraBlack DVL Use
0/12 - 4/12 0/12 - 6/12 11" Support Box
5/12 - 9/12 7/12 - 13/12 24" Support Box
10/12 - 14/12 14/12 - 20/12 36" Support Box
