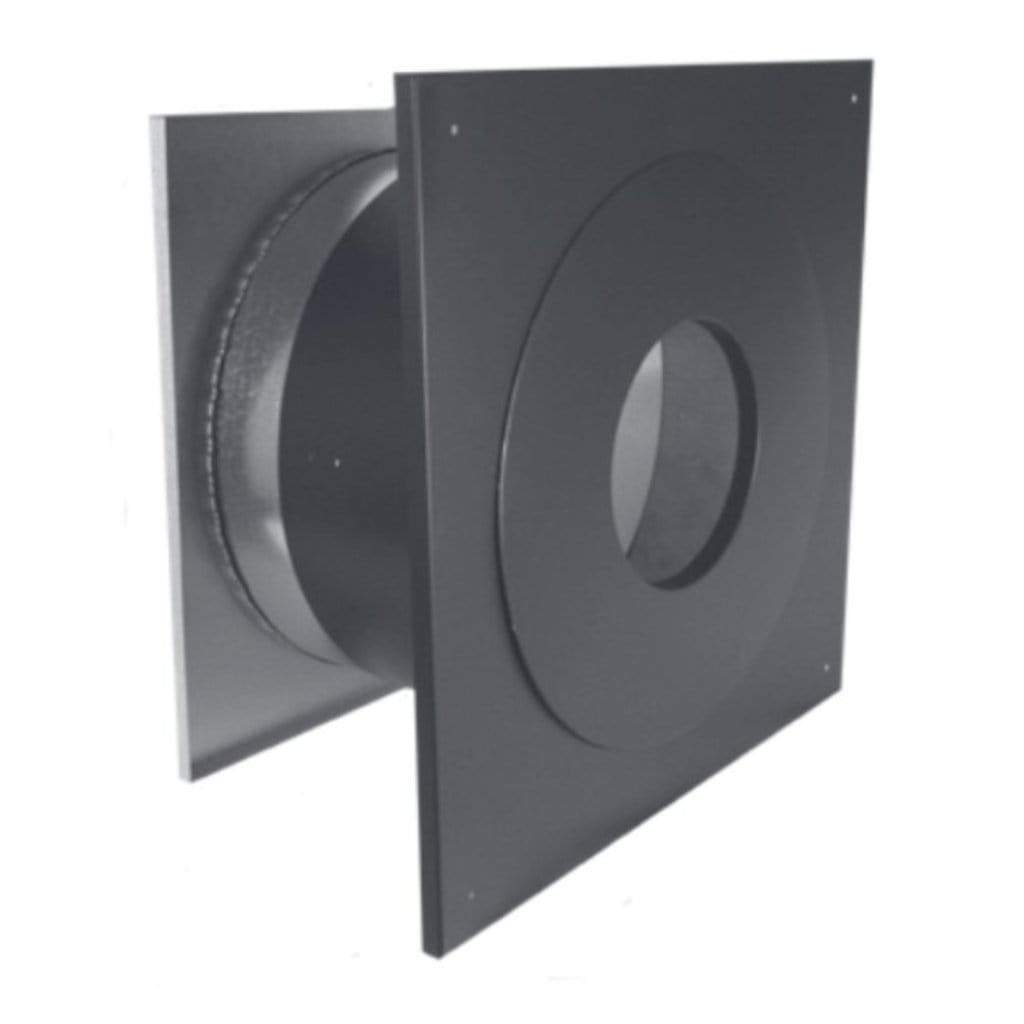

Majestic DuraPlus 6" Galvanized Steel Wall Thimble
Majestic DuraPlus 6" Galvanized Steel Wall Thimble
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
DuraPlus® is designed to stay cool on the outside, to provide a hot draft on the inside, to boost stove efficiency, and to provide for a fire-safe design that protects both the chimney and the building. This triple-wall chimney features two insulating layers (ceramic blanket, plus air space). The ceramic blanket insulation is held securely in position, eliminating hot spots common with loose-fill type insulations. In the event of a creosote fire, the compressible blanket insulation permits the chimney liner to expand outwardly in a radial direction.
Designed for normal, continuous operation at 1000°F flue gas temperatures, DuraPlus® subjected to rigorous and stringent HT requirements of the UL standard, including one hour at 1400°F, plus three ten minute chimney fire tests at 2100°F.
What's Included
- Wall Thimble
Features
- Adjusts from a minimum of 4 1⁄4” to a maximum of 7 1⁄4” wall thickness, and fits between standard wall studs.
- To accommodate thicker walls, the telescoping pieces can be extended up to 16” with a field-fabricated extension installed.
- Interior trim ring painted black.
- Must be installed with DuraPlus chimney pipe horizontally through the wall and extend a minimum of 2” into the room beyond the interior wall.
- For adapters, see DVL and DuraBlack section.
- UL Listed to UL 103HT (MH7399).
Specifications
Model | DV-6DP-WT |
Product Type |
Wall Thimble |
Size |
6" |
Technical Dimensions
When using a Wall Thimble
Wall Thickness | Install Pipe Section |
4 1⁄2" | 6" |
4 1⁄2" - 5 1⁄2" | 9" |
5 1⁄2" - 8 1⁄2" | 12" |
8 1⁄2" - 13" | (2) 9" |
