SKU:DV-6DP-FRS

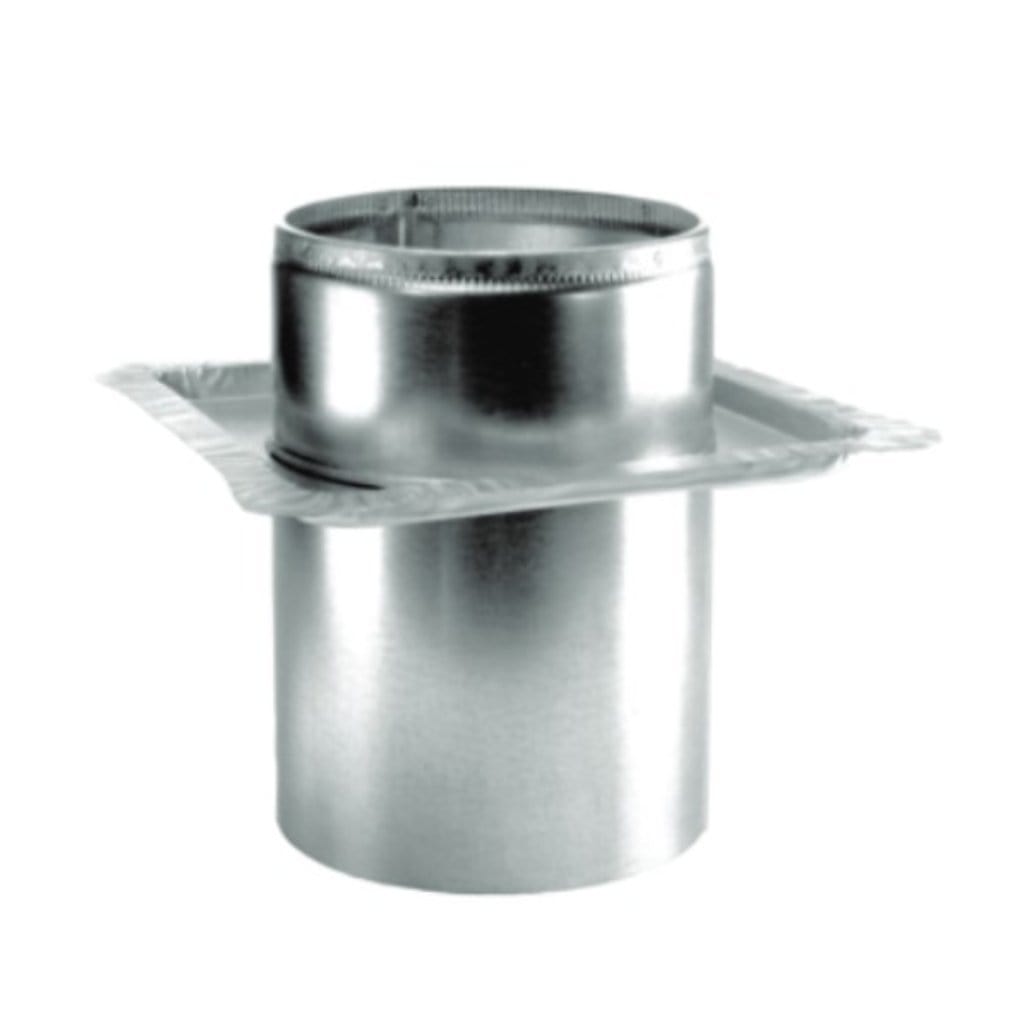

Majestic DuraPlus 6" Firestop Radiation Shield
Majestic DuraPlus 6" Firestop Radiation Shield
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
DuraPlus® is designed to stay cool on the outside, to provide a hot draft on the inside, to boost stove efficiency, and to provide for a fire-safe design that protects both the chimney and the building. This triple-wall chimney features two insulating layers (ceramic blanket, plus air space). The ceramic blanket insulation is held securely in position, eliminating hot spots common with loose-fill type insulations. In the event of a creosote fire, the compressible blanket insulation permits the chimney liner to expand outwardly in a radial direction.
Designed for normal, continuous operation at 1000°F flue gas temperatures, DuraPlus® subjected to rigorous and stringent HT requirements of the UL standard, including one hour at 1400°F, plus three ten minute chimney fire tests at 2100°F.
What's Included
- Firestop Radiation Shield
Features
- 6" DuraPlus firestop radiation shield
- Use in ceiling/floor penetrations when a ceiling support is not used.
- Not required when passing through the roof.
- Fits on underside of ceiling and adjusts to cover framing.
- UL Listed to UL 103HT (MH7399).
Specifications
Model | DV-6DP-FRS |
Product Type |
Firestop Radiation Shield |
Size |
6" |
A | 10 3⁄16" |
B | 10 7⁄8" |
C | 16 1⁄2" |
Technical Dimensions
