Majestic DuraPlus 6" 15-Degree Elbow Kit
Majestic DuraPlus 6" 15-Degree Elbow Kit
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
DuraPlus® is designed to stay cool on the outside, to provide a hot draft on the inside, to boost stove efficiency, and to provide for a fire-safe design that protects both the chimney and the building. This triple-wall chimney features two insulating layers (ceramic blanket, plus air space). The ceramic blanket insulation is held securely in position, eliminating hot spots common with loose-fill type insulations. In the event of a creosote fire, the compressible blanket insulation permits the chimney liner to expand outwardly in a radial direction.
Designed for normal, continuous operation at 1000°F flue gas temperatures, DuraPlus® subjected to rigorous and stringent HT requirements of the UL standard, including one hour at 1400°F, plus three ten minute chimney fire tests at 2100°F.
What's Included
- Elbow
- Elbow Strap
Features
- Use for offsets around obstructions such as rafters, ridgepoles, or joists.
- May have two pairs of elbows, if needed.
- Offsets greater than 30° are not permitted in accordance to UL 103 standards.
- Elbows swivel 360° at base (angles are not adjustable).
- A pair of elbows is required to return an offset chimney back to vertical.

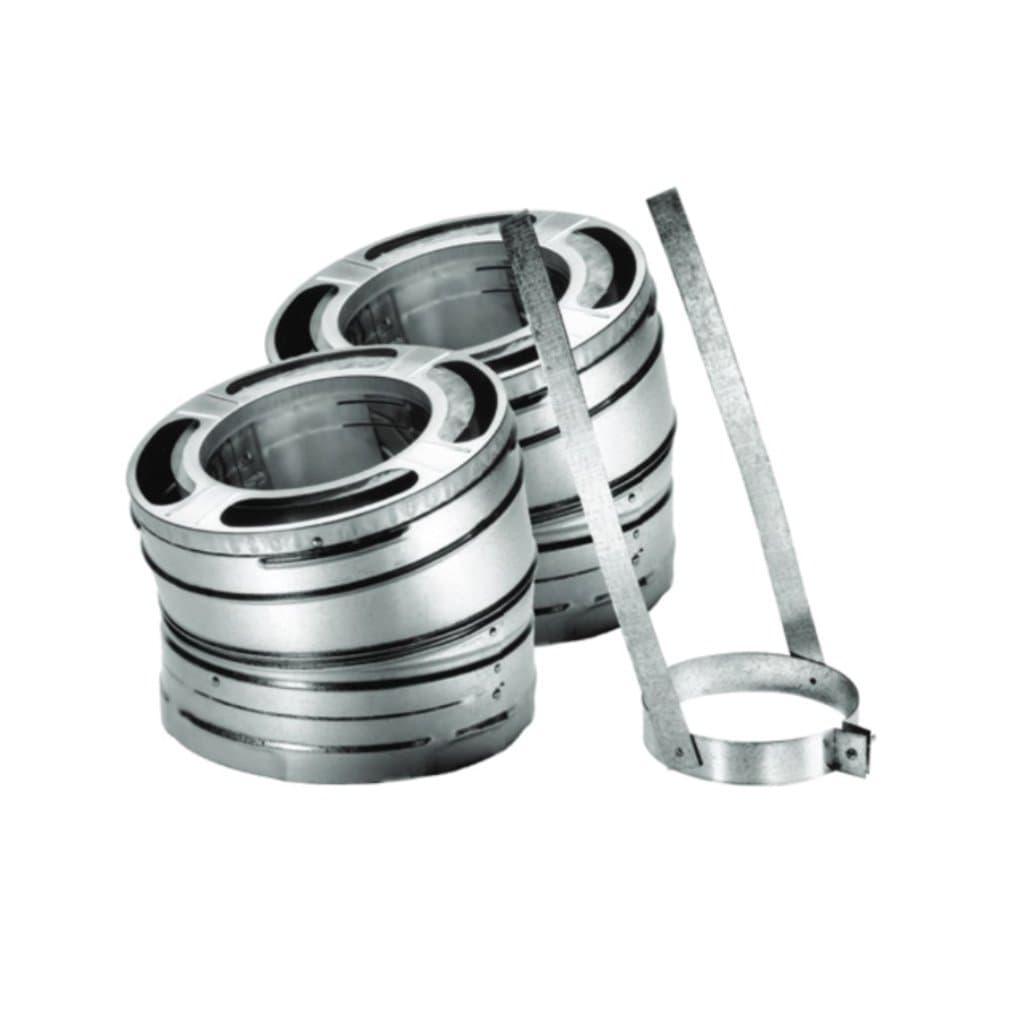

- Kit includes (2) elbows and one Elbow Strap.
Specifications
| Model | DV-6DP-E15 |
| Product Type |
Elbow Kit |
| Elbow Type |
15 Degree |
| Size |
6" |
| A | 4" |
| B | 3 3⁄4" |
Technical Dimensions
