SKU:DV-7DP-WS

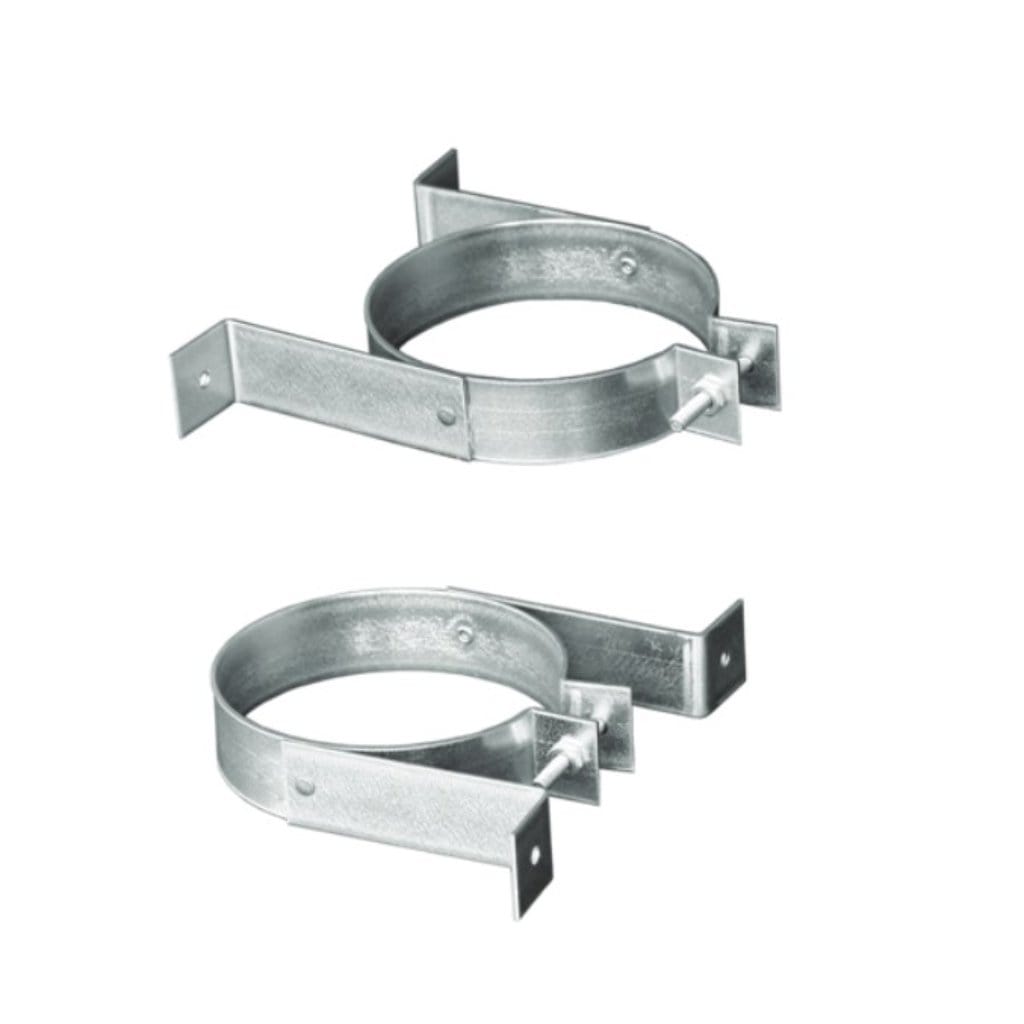

Majestic B-Vent 10" Wall Strap
Majestic B-Vent 10" Wall Strap
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
DuraPlus® is designed to stay cool on the outside, to provide a hot draft on the inside, to boost stove efficiency, and to provide for a fire-safe design that protects both the chimney and the building. This triple-wall chimney features two insulating layers (ceramic blanket, plus air space). The ceramic blanket insulation is held securely in position, eliminating hot spots common with loose-fill type insulations. In the event of a creosote fire, the compressible blanket insulation permits the chimney liner to expand outwardly in a radial direction.
Designed for normal, continuous operation at 1000°F flue gas temperatures, DuraPlus® subjected to rigorous and stringent HT requirements of the UL standard, including one hour at 1400°F, plus three ten minute chimney fire tests at 2100°F.
What's Included
- Wall Strap
Features
- Use to provide support for offsets and horizontal runs.
- Recommended every 4’ to support vertical common vent.
- 10” Type B gas vent (11” OD) uses a 7” DuraPlus Chimney Wall Strap.
- Wall Strap legs can be rotated 360 ̊ to conceal screw.
Specifications
Model | DV-7DP-WS |
Product Type |
Wall Strap |
ØA | 10 5⁄8" |
Technical Dimensions
